M26
NGC 6694
47’ x 31’ | 0.3”/px | 9440 × 6284 px | full resolution
Scutum
RA 18h 45m Dec -09° 22’ | 0°
Messier 26, also known as NGC 6694, is an open cluster of stars in the southern constellation of Scutum. It was discovered by Charles Messier in 1764. It is south-southwest of the open cluster Messier 11. M26 spans a linear size of 22 light years across with a tidal radius of 25 light-years, and is at a distance of 5,160 light years from the Earth. The brightest star is of magnitude 11 and the age of this cluster has been calculated to be 85.3 million years. An interesting feature of M26 is a region of low star density near the nucleus. A hypothesis was that it was caused by an obscuring cloud of interstellar matter between us and the cluster, but a paper by James Cuffey suggested that this is not possible and that it really is a "shell of low stellar space density". In 2015, Michael Merrifield of the University of Nottingham said that there is, as yet, no clear explanation for the phenomenon.
source: Wikipedia
Data Acquisition
Data was collected over 4 nights in July 2025, using a 14” reflector telescope with full-frame camera at the remote observatory in Spain. Data was gathered using standard RGB filters. A total of approximately 6 hours of data was finally combined to create the final image.
Location Remote hosting facility IC Astronomy in Oria, Spain (37°N 2°W)

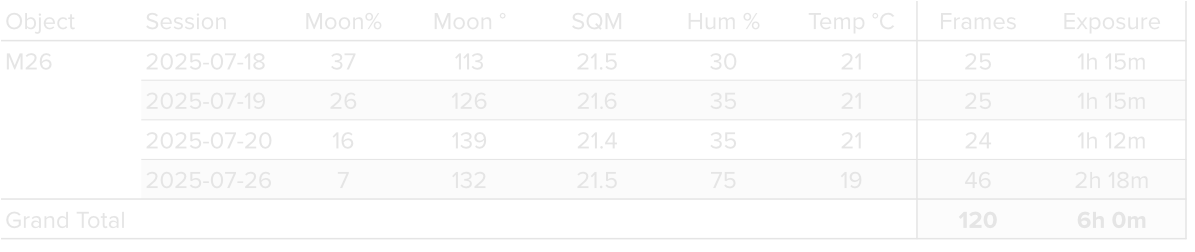

Sessions

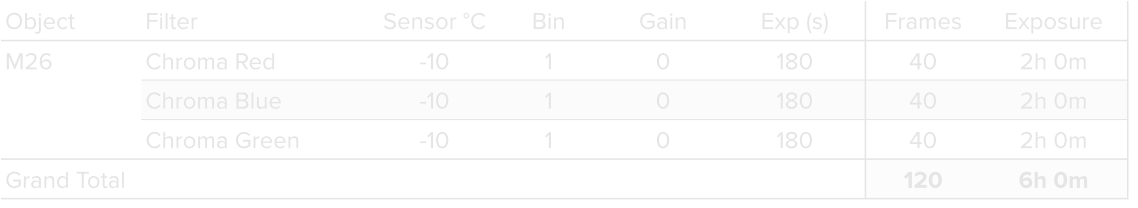

Frames
Equipment
Telescope
Mount
Camera
Filters
Guiding
Accessoires
Software
Planewave CDK14 (2563mm @ f/7.2), Optec Gemini Rotating focuser
10Micron GM2000HPS, custom pier
Moravian C3-61000 Pro (full frame), cooled to -10 ºC
Chroma 2” RGB unmounted, Moravian filterwheel L, 7-position
Unguided
Compulab Tensor I-22, Dragonfly, Pegasus Ultimate Powerbox v2
Voyager Advanced, Viking, Mountwizzard4, Astroplanner, PixInsight 1.9.3
Processing

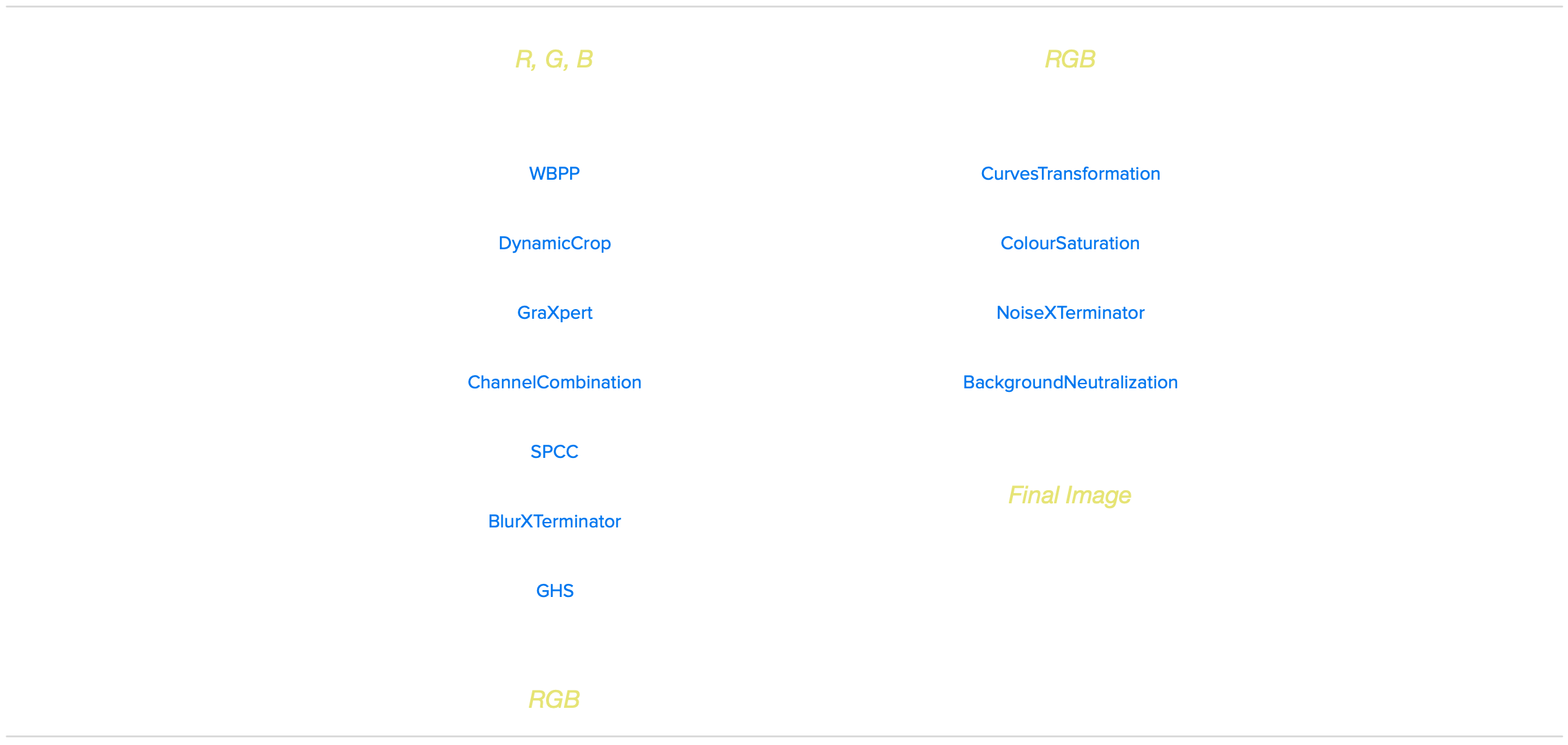

All processing was done in Pixsinsight unless stated otherwise. Default features were enhanced using scripts and tools from RC-Astro, SetiAstro, GraXpert, CosmicPhotons and others. Images were calibrated using 50 Darks, 50 Flats, and 50 Flat-Darks, registered and integrated using WeightedBatchPreProcessing (WBPP). The processing workflow diagram below outlines the steps taken to create the final image.
The full processing workflow followed standard procedures.
Processing workflow (click to enlarge)
This image has been published on Astrobin.
